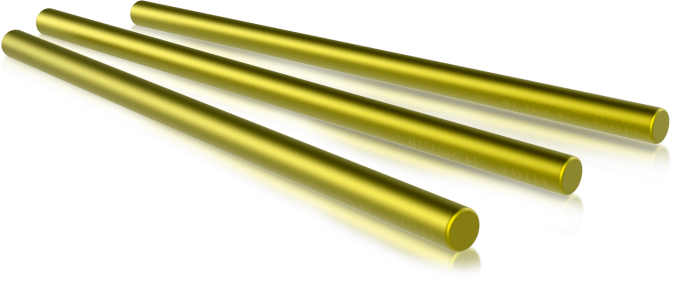

CONNECTING RODS

Monolock Connecting Rod

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.0 mm To 6.0 mm
(Range: 0.5 mm difference In diameter)		 30 mm To 500mm long
(Range: 10 mm difference In length)
Dia 5.5mm
40mm 110mm 175mm
50mm 120mm 180mm
60mm 125mm 190mm
70mm 130mm 200mm
80mm 140mm 250mm
90mm 150mm 300mm
100mm 160mm 350mm
170mm 400mm

Monolock Dual dia connecting rod

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.0 mm To 6.0 mm
(Range: 0.5 mm difference In diameter)		 30 mm To 500mm long
(Range: 10 mm difference In length)
Dia 3.7 x 5.5 x 250mm Dia 4.5 x 5.5 x 250mm
Dia 3.7 x 5.5 x 350mm Dia 4.5 x 5.5 x 350mm
Dia 3.7 x 5.5 x 450mm Dia 4.5 x 5.5 x 450mm

DTAP Connecting rod

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.0 mm To 6.0 mm
(Range: 0.5 mm difference In diameter)		 30 mm To 500mm long
(Range: 10 mm difference In length)
Dia 5.5mm
40mm 125mm
50mm 150mm
60mm 175mm
70mm 200mm
80mm 250mm
90mm 300mm
100mm 400mm
500mm

MIS Monolock Contoured connecting rod

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.0 mm To 6.0 mm
(Range: 0.5 mm difference In diameter)		 30 mm To 500mm long
(Range: 10 mm difference In length)
Dia 5.5mm
35mm 90mm
40mm 100mm
45mm 110mm
50mm 120mm
60mm 130mm
70mm 140mm
80mm 150mm

MIS Monolock Straight connecting rod

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.0 mm To 6.0 mm
(Range: 0.5 mm difference In diameter)		 30 mm To 500mm long
(Range: 10 mm difference In length)
Dia 5.5mm
35mm 90mm
40mm 100mm
45mm 110mm
50mm 120mm
60mm 130mm
70mm 140mm
80mm 150mm
