TIBIAL NAILING SYSTEM
Features:
Nailing system with a streamlined instrumentation.
- Easy insertion and extraction of nail.

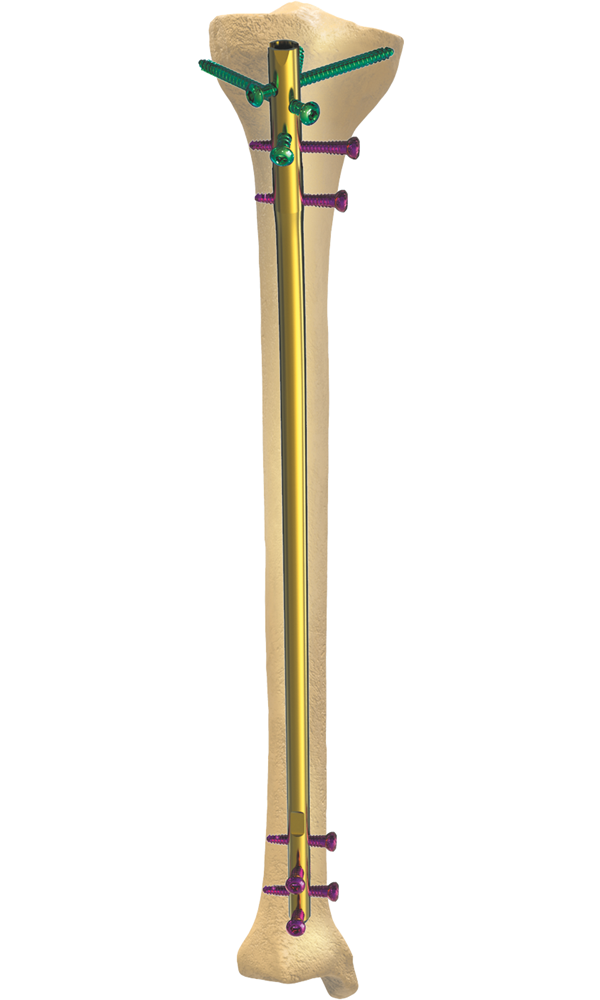

- Multiple locking options
- Five-hole proximal locking & four-hole distal locking configuration in one nail
- Herzog bend – 10 degree
- Neck shaft angle of 130°

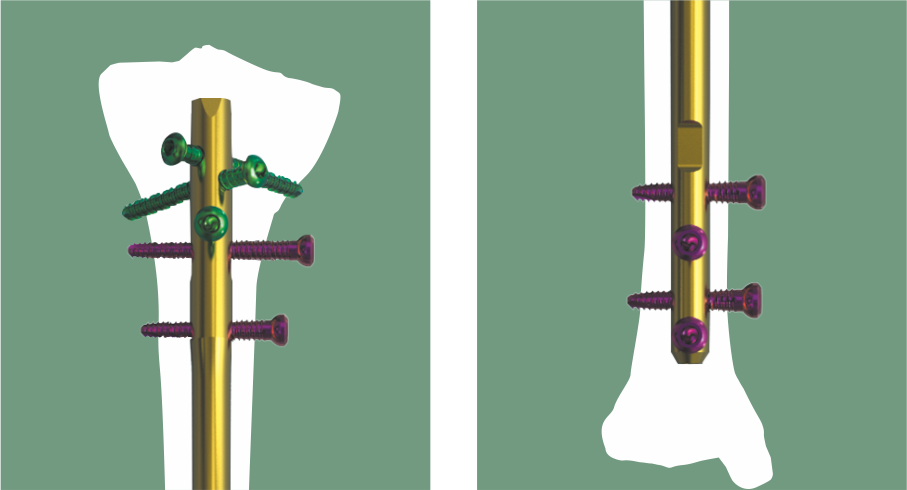

- Three unique oblique locking options, in combination with one static & dynamic cancellous bone locking.
- Two Mediolateral & anterioposterior distal locking.
- Nail available in 8mm, 9mm, 10mm, and 11mm diameters with size ranging from 285mm to 375mm in 15mm increment for each diameter.
Screws:
- Ø5.0mm cancellous screws for oblique locking.
- Ø4.5mm Angular Stable Locking Screw.

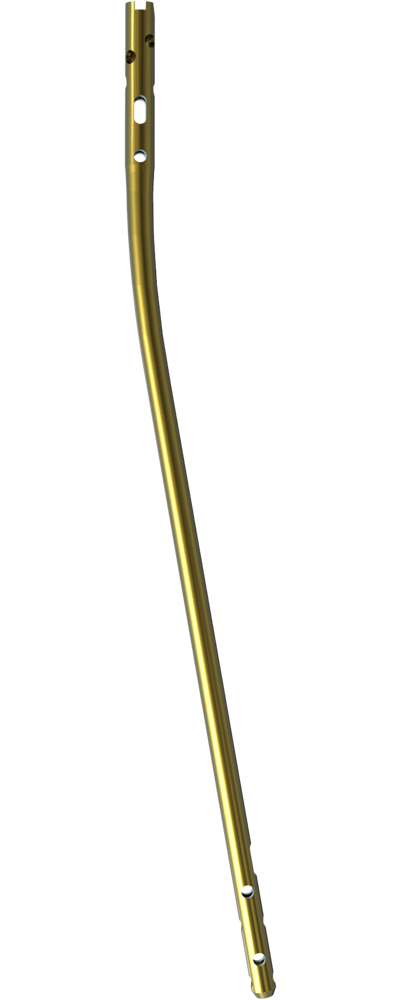

Recon Nail - Tibia
- Dia : 8 / 9 / 10 / 11
- Length : 285 / 300 / 315 / 330 / 345 / 360 / 375
- Material : Ti-6Al-4V ELI (Titanium)
- Diameters : 8 – 11 mm (1 mm increments)
- Color : Gold
- Lengths: 285 – 375 mm (15mm increments)
- Cannulation : All nails are cannulated.

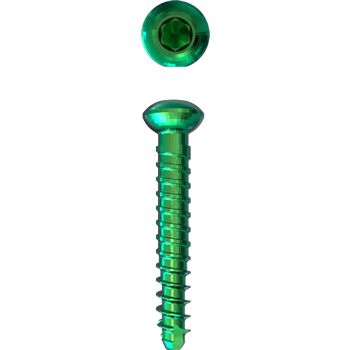

Cancellous locking screw Ø5.0mm
- Material : Ti-6Al-4V ELI (Titanium)
- Color : Green
- Lengths : 25 – 90 mm (5 mm increments)
- Design : Dual core diameter 4.2 / 3.2mm
- Larger core (4.2mm) to withstand load bearing from nail
- Smaller core (3.2mm) provides better purchase in cancellous bone.
- Self-tapping, blunt tip.
| 25mm |
45mm |
65mm |
85mm |
| 30mm |
50mm |
70mm |
90mm |
| 35mm |
55mm |
75mm |
|
| 40mm |
60mm |
80mm |
|
Angular stable locking screw Ø4.5mm
- Material : Ti-6Al-4V ELI (Titanium)
- Color : Pink
- Lengths : 26 – 60 mm (2 mm increments)
- Design : Dual diameter 5.2 / 4.4mm. Improved fixation in poor quality bone, Dual diameter design provides better purchase when reamed near cortex. Fully threaded, Self-tapping, blunt tip.
| 26mm |
36mm |
46mm |
56mm |
| 28mm |
38mm |
48mm |
58mm |
| 30mm |
40mm |
50mm |
60mm |
| 32mm |
42mm |
52mm |
|
| 34mm |
44mm |
54mm |
|
